Priority-Boosting RCU Read-Side Critical Sections

Introduction

Read-copy update (RCU) is a synchronization API that is sometimes used in place of reader-writer locks. RCU's read-side primitives offer extremely low overhead and deterministic execution time. These properties imply that RCU updaters cannot block RCU readers, which means that RCU readers can be expensive, as they must leave old versions of the data structure in place to accommodate pre-existing readers. Furthermore, these old versions must be reclaimed after all pre-existing readers complete. The Linux kernel offers a number of RCU implementations, the first such implementation being called "Classic RCU".

The RCU implementation for the -rt patchset is unusual in that it permits read-side critical sections to be blocked waiting for locks and due to preemption. If these critical sections are blocked for too long, grace periods will be stalled, and the amount of memory awaiting the end of a grace period will continually increase, eventually resulting in an out-of-memory condition. This theoretical possibility was apparent from the start, but when Trevor Woerner actually made it happen, it was clear that something needed to be done. Because priority boosting is used in locking, it seemed natural to apply it to realtime RCU.

Unfortunately, the priority-boosting algorithm used for locking could not be applied straightforwardly to RCU because this algorithm uses locking, and the whole point of RCU is to avoid common-case use of such heavy-weight operations in read-side primitives. In fact, RCU's read-side primitives need to avoid common-case use of all heavyweight operations, including atomic instructions, memory barriers, and cache misses. Therefore, bringing priority boosting to RCU turned out to be rather challenging, not because the eventual solution is all that complicated, but rather due to the large number of seductive but subtly wrong almost-solutions.

This document describes a way of providing light-weight priority boosting to RCU, and also describes several of the number of seductive but subtly wrong almost-solutions.

Approaches

This paper describes three approaches to priority-boosting blocked RCU read-side critical sections. The first approach minimizes scheduler-path overhead and uses locking on non-fastpaths to decrease complexity. The second approach is similar to the first, and was in fact a higher-complexity intermediate point on the path to the first approach. The third approach uses a per-task lock solely for its priority-inheritance properties, which introduces the overhead of acquiring this lock into the scheduler path, but avoids adding an "RCU boost" component to the priority calculations. Unfortunately, this third approach also cannot be made to reliably boost tasks blocked in RCU read-side critical sections, so the first approach should be used to the exclusion of the other two. Each of these approaches is described in a following section, after which is a section enumerating other roads not taken.

RCU Explicit Priority Boosting

The solution described in this paper makes use of a separate RCU-booster task that monitors per-CPU arrays of lists of target tasks that have been blocked while in an RCU read-side critical section. Overhead is incurred only when such blocking occurs, permitting the RCU read-side-acquisition primitive (e.g., rcu_read_lock()) to contain exactly the same sequence of instructions contained in its non-boosted counterpart.

Data Structures

Each element of each per-CPU array is a structure named struct rcu_boost_dat as shown below:

1 struct rcu_boost_dat { 2 raw_spinlock_t rbs_mutex; 3 struct list_head rbs_toboost; 4 struct list_head rbs_boosted; 5 long rbs_blocked; 6 long rbs_boost_attempt; 7 long rbs_boost; 8 long rbs_unlock; 9 long rbs_unboosted; 10 long rbs_stats[][]; 11 }

The rbs_mutex field guards all fields in the structure, rbs_toboost is a list containing target tasks that are candidates for boosting, and rbs_boosted is a list containing target tasks that have already been boosted. The rest of the fields are statistics: rbs_blocked counts the number of RCU read-side critical sections that were blocked (whether once or multiple times), rbs_boost_attempt counts the number of tasks that the RCU-booster task has attempted to boost, rbs_boost counts the number of such attempts in which boosting was accomplished, rbs_unlock counts the number of outermost rcu_read_unlock() operations that end a blocked RCU read-side critical section, and rbs_unboosted counts the number of tasks whose that needed to be unboosted by rcu_read_unlock(). The rbs_stats[] array tracks the number of transitions due to each event from each state.

Next we'll look at the task_struct fields that are used in RCU priority boosting:

1 struct rcu_boost_dat *rcub_rbdp; 2 enum rcu_boost_state rcub_state; 3 struct list_head rcub_entry;

The rcub_rbdp is a pointer to the rcu_boost_dat struct on which this task is enqueued, rcub_state holds the RCU priority-boost state for this task, and rcub_entry is the list entry used to enqueue this task on either the rbs_toboost or the rbs_boosted lists.

A schematic of the organization of the rcu_boost_dat data structure is shown to the right. The rbs_toboost fields are represented by the upper set of elements, and the rbs_boosted fields are represented by the lower set of elements. These elements are indexed in a circular fashion based on the value of the global index, which is named rcu_boost_idx. Please note that corresponding elements in the upper and lower sets in the figure are guarded by the same spinlock, the rbs_mutex field. Use of this index eliminates the need to physically move target tasks from one locking domain to another, thus guaranteeing that a given task is subject to the same lock throughout, eliminating the need for latency-prone retry-style lock acquisition.

For a given CPU, the indexed element indicates in which list to place target tasks that have just blocked within an RCU read-side critical section. When a given target task exits its outermost RCU read-side critical section that was blocked, that task removes itself from whatever list it was added to, and also unboosts itself if need be.

A separate RCU priority-boosting task increments the index periodically (modulo the size of the array), resulting in the configuration shown on the left. After each such increments, this RCU-boost task boosts the priority of those (hopefully few) target tasks that have remained for a full time period, as well as any previously boosted tasks that still remain in the list. This reboosting is performed to allow for the possibility that the system administrator changed the priority of the RCU-booster task since the last time those tasks were boosted. Such boosting might well be attempted concurrently with the target task removing itself from the list. Much care is required in order to avoid boosting a target task just after it removes itself from its list. Failure to avoid this scenario could result in an otherwise low-priority task remaining boosted indefinitely, in turn causing other high-priority realtime tasks to miss their deadlines.

The state machine described in the next section prevents such failure scenarios from occurring.

State Diagram

Each task has an associated RCU-booster state, which can take on the values shown on the right. Tasks in the RCU_BOOST_BLOCKED state are linked into the uppermost of the two sets of lists shown above, while tasks in the RCU_BOOSTED state are linked into the lower of these two sets of lists, and tasks in the RCU_BOOST_IDLE state are not linked into either set of lists. The black state transitions are traversed by the task, while the red transitions are traversed by the RCU-booster task.

All priority boosting is carried out by the RCU-booster task, while all priority unboosting is carried out by the target task. This approach ensures that unboosting is exact, preventing low-priority tasks from running at high priority any longer than necessary.

Per-State Details

The purpose of the individual states are as follows:

• RCU_BOOST_IDLE: This is the initial state. A target task resides in this state when not in an RCU read-side critical section, or when in an RCU read-side critical section that has not yet blocked.
• RCU_BOOST_BLOCKED: The target task has blocked while in an RCU read-side critical section.
• RCU_BOOSTED: The RCU-booster task has completed boosting the target task's priority.

Events

The important events for a target task are (1) being blocked in an RCU read-side critical section and (2) completing a previously blocked RCU read-side critical section. When a target task is blocked in an RCU read-side critical section, it always adds itself to the current list of its per-CPU array. Conversely, when a target task completes a previously blocked RCU read-side critical section, it removes itself from this list. If its priority has been boosted, it also unboosts itself.

The important event for the RCU-booster task is boosting a target task's priority.

Implementation

Helper Functions

The listing below shows functions used to access the proper element of the arrays used to track tasks that are candidates for RCU priority boosting.

1 struct rcu_boost_dat *rcu_rbd_new(void) 2 { 3 int cpu = raw_smp_processor_id(); 4 int idx = rcu_boost_idx; 5 6 smp_read_barrier_depends(); barrier(); 7 if (unlikely(idx < 0)) 8 return (NULL); 9 return &per_cpu(rcu_boost_dat, cpu)[idx]; 10 } 11 12 struct rcu_boost_dat *rcu_rbd_boosting(int cpu) 13 { 14 int idx = (rcu_boost_idx + 1) & (RCU_BOOST_ELEMENTS - 1); 15 16 return &per_cpu(rcu_boost_dat, cpu)[idx]; 17 }

The rcu_rbd_new() function is used by newly blocked tasks adding themselves to the data structure, while the rcu_rbd_boosting() function is used by the RCU-booster task to locate tasks in need of boosting.

The rcu_rbd_new() function returns the rcu_boost_dat element be used for newly blocked tasks adding themselves to the data structure. Lines 3 and 4 pick up the CPU ID and the current value of the index, respectively. Line 6 issues any memory barriers needed on Alpha and prevents the compiler from optimizing bugs into this function on other platforms. Line 7 checks to see if this function is being called before the RCU-booster task has completed initialization, and, if so, line 8 returns. Otherwise, line 9 uses the CPU and index to select the right rcu_boost_dat structure to queue on.

The rcu_rbd_boosting is simpler because it is invoked only from the RCU-booster task, and therefore cannot run concurrently with a counter increment (although this could change if there are ever multiple RCU-booster tasks). Line 14 selects the index that was least-recently the target of tasks newly blocked in RCU read-side critical sections, and line 16 uses the index and the specified CPU to select the right rcu_boost_dat structure to boost from.

The rcu_boost_prio() and rcu_unboost_prio() functions shown below boost and unboost the specified task's RCU priority.

1 static void rcu_boost_prio(struct task_struct *taskp) 2 { 3 unsigned long oldirq; 4 int rcuprio; 5 6 spin_lock_irqsave(&current->pi_lock, oldirq); 7 rcuprio = rt_mutex_getprio(current) + 1; 8 if (rcuprio >= MAX_USER_RT_PRIO) 9 rcuprio = MAX_USER_RT_PRIO - 1; 10 spin_unlock_irqrestore(&current->pi_lock, oldirq); 11 spin_lock_irqsave(&taskp->pi_lock, oldirq); 12 if (taskp->rcu_prio != rcuprio) { 13 taskp->rcu_prio = rcuprio; 14 if (taskp->rcu_prio != taskp->prio) 15 rt_mutex_setprio(taskp, taskp->rcu_prio); 16 } 17 spin_unlock_irqrestore(&taskp->pi_lock, oldirq); 18 } 19 20 static void rcu_unboost_prio(struct task_struct *taskp) 21 { 22 int nprio; 23 unsigned long oldirq; 24 25 spin_lock_irqsave(&taskp->pi_lock, oldirq); 26 taskp->rcu_prio = MAX_PRIO; 27 nprio = rt_mutex_getprio(taskp); 28 if (nprio > taskp->prio) 29 rt_mutex_setprio(taskp, nprio); 30 spin_unlock_irqrestore(&taskp->pi_lock, oldirq); 31 }

Lines 6-10 of rcu_boost_prio() get the priority of the current (RCU-booster) task, setting the target task's rcu_prio field to one notch less-favored priority if possible, and to the least-favored realtime priority otherwise. The rt_mutex_getprio() primitive is used to actually obtain this priority. Lines 11-17 boost the target task's priority, with line 12 checking to see if the task has already been RCU-boosted to the desired priority. If not, line 13 updates the task's rcu_prio field, line 14 checks to see if the task is already running at the desired priority (perhaps due to lock-based boosting), and, if not, line 15 does the actual priority change. Note that this function is capable of decreasing a task's priority, as will be described below.

Lines 25-30 of rcu_unboost_prio() unboost the target task, again using rt_mutex_getprio() and rt_mutex_setprio() to manipulate the priorities. Line 26 updates the task's rcu_prio field to prevent any future priority calculations from adding an RCU component to the priority. Line 28 checks to see if the task is already running at a less-favorable priority before actually deboosting on line 29.

Both functions hold the given task's pi_lock in order to properly synchronize with other changes to that task's priority. In addition, the rt_mutex_getprio() and rt_mutex_setprio() primitives have been modified to take the task's rcu_prio field into account in the priority calculations, ensuring that possible lock-based priority deboosts will not remove the RCU priority boost.

Blocking Within an RCU Read-Side Critical Section

The scheduler contains a call to rcu_preempt_boost, which is shown on lines 1-5 below:

1 #define rcu_preempt_boost() \ 2 do { \ 3 if (unlikely(current->rcu_read_lock_nesting > 0)) \ 4 __rcu_preempt_boost(); \ 5 } while (0) 6 7 void __rcu_preempt_boost(void) 8 { 9 struct rcu_boost_dat *rbdp; 10 unsigned long oldirq; 11 12 local_irq_save(oldirq); 13 rbdp = rcu_rbd_new(); 14 if (rbdp == NULL) { 15 local_irq_restore(oldirq); 16 printk("Preempted RCU too early.\n"); 17 return; 18 } 19 spin_lock(&rbdp->rbs_mutex); 20 rbdp->rbs_blocked++; 21 rcu_boost_dat_stat_block(rbdp, current->rcub_state); 22 if (current->rcub_state != RCU_BOOST_IDLE) { 23 spin_unlock_irqrestore(&rbdp->rbs_mutex, oldirq); 24 return; 25 } 26 current->rcub_state = RCU_BOOST_BLOCKED; 27 list_add_tail(&current->rcub_entry, &rbdp->rbs_toboost); 28 current->rcub_rbdp = rbdp; 29 spin_unlock_irqrestore(&rbdp->rbs_mutex, oldirq); 30 }

This macro checks to see if the current task is in an RCU read-side critical section, and, if so, invokes the __rcu_preempt_boost() function to place the calling task on the priority-boost lists.

The __rcu_preempt_boost() function runs with irqs disabled, and is potentially invoked with irqs already disabled. Line 12 disables irqs, and line 13 identifies the struct rcu_boost_dat that is to be used Line 14 then checks to see whether the RCU-booster task has started, and lines 15-18 restore irqs and returns if so.

Otherwise, line 19 acquires the lock. Note that the index can change during this time, but because the index must be incremented three times in order for the RCU-booster task to get to this entry, this situation is unlikely to result in premature boosting. Lines 20-21 gather statistics.

Lines 22-25 check to see if this task is already on the priority-boost lists, and if so, restores irqs and returns. Otherwise, line 26 updates the task's state to indicate that this task has blocked in its current RCU read-side critical section, line 27 adds it to the appropriate priority-boost list, line 28 caches a pointer to the list in the task structure, and line 29 releases the lock and restores irqs.

Boosting The Priority of a List of Tasks

The rcu_boost_one_reader_list function shown below is invoked by the RCU-booster task to priority-boost all tasks still remaining on the specified rcu_boost_dat structure.

1 static void rcu_boost_one_reader_list(struct rcu_boost_dat *rbdp) 2 { 3 LIST_HEAD(list); 4 unsigned long oldirq; 5 struct task_struct *taskp; 6 7 spin_lock_irqsave(&rbdp->rbs_mutex, oldirq); 8 list_splice_init(&rbdp->rbs_toboost, &list); 9 list_splice_init(&rbdp->rbs_boosted, &list); 10 while (!list_empty(&list)) { 11 spin_unlock_irqrestore(&rbdp->rbs_mutex, oldirq); 12 schedule_timeout_uninterruptible(1); 13 spin_lock_irqsave(&rbdp->rbs_mutex, oldirq); 14 if (list_empty(&list)) 15 break; 16 taskp = list_entry(list.next, typeof(*taskp), rcub_entry); 17 list_del_init(&taskp->rcub_entry); 18 rbdp->rbs_boost_attempt++; 19 if (taskp->rcub_state != RCU_BOOST_BLOCKED) { 20 list_add_tail(&taskp->rcub_entry, &rbdp->rbs_toboost); 21 rcu_boost_dat_stat_boost(rbdp, taskp->rcub_state); 22 continue; 23 } 24 rcu_boost_prio(taskp); 25 taskp->rcub_state = RCU_BOOSTED; 26 rbdp->rbs_boost++; 27 rcu_boost_dat_stat_boost(rbdp, RCU_BOOST_BLOCKED); 28 list_add_tail(&taskp->rcub_entry, &rbdp->rbs_boosted); 29 } 30 spin_unlock_irqrestore(&rbdp->rbs_mutex, oldirq); 30 }

The boosting is done under the protection of this structure's mutex, but this mutex is periodically dropped to allow the RCU-booster task to sleep, thus avoiding imposing excessive scheduling latencies on realtime tasks. Lines 8 and 9 pull the contents of the rcu_boost_dat structure's two lists onto a local list. This has the effect of reboosting tasks, which is useful in case the system administrator manually increased the RCU-booster task's priority since the previous boost. Line 10 sequences through the list, and lines 11-13 sleep as noted earlier. Lines 14-15 recheck the list to allow for the possibility of the tasks having exited their RCU read-side critical sections in the meantime, thus removing themselves from the list.

Line 16-17 removes the first task on the list, and line 18 updates statistics. Lines 19-23 reject tasks that are in the wrong state (but counts them), and puts them back on the rbs_toboost list. Line 24 boosts the task, line 25 updates state to indicate that this task has had its priority boosted, lines 26-27 accumulate statistics, and line 28 puts the task on the rbs_boosted list. If the task is still present after the index has been incremented four more times, it may be boosted again, as noted above, allowing any recent changes in the priority of the RCU-booster task to be taken into account.

Sequencing Through Lists of Tasks

The rcu_booster() function:

1 static int rcu_booster(void *arg) 2 { 3 int cpu; 4 struct sched_param sp; 5 6 sp.sched_priority = PREEMPT_RCU_BOOSTER_PRIO; 7 sched_setscheduler(current, SCHED_RR, &sp); 8 current->flags |= PF_NOFREEZE; 9 do { 10 rcu_boost_idx = (rcu_boost_idx + 1) % RCU_BOOST_ELEMENTS; 11 for_each_possible_cpu(cpu) { 12 rcu_boost_one_reader_list(rcu_rbd_boosting(cpu)); 13 } 14 schedule_timeout_uninterruptible(HZ / 100); 15 rcu_boost_dat_stat_print(); 16 } while (!kthread_should_stop()); 17 return 0; 18 }

periodically cycles through the lists of tasks that may be in need of priority boosting, running as a kernel thread. Lines 6-8 set this task to its default realtime priority, and prevent it from interfering with suspend processing. The loop starting at line 9 makes one pass through each CPU's candidate RCU-boost target tasks, with line 10 advancing the index so as to "age" all tasks that have blocked while in their current RCU read-side critical section. This advancing of the index will require special coordination should it ever be necessary to have multiple RCU-booster tasks. Lines 11-13 invoke rcu_boost_one_reader_list() on each CPU's most-aged rcu_boost_dat structure in order to boost any tasks that have been blocked for a long time in an RCU read-side critical section for each CPU. Line 14 waits for about 10 milliseconds, which means that tasks must remain in their RCU read-side critical sections for at least 30 milliseconds to become candidates for boosting -- and they have to have blocked at least once during that time. This seems like a good default setting, but more experience is required to determine what really is appropriate. Line 15 prints statistics if the PREEMPT_RCU_BOOST_STATS config parameter is set.

Unboosting

The listing below shows rcu_read_unlock_unboost(), which is invoked from rcu_read_unlock() to unboost the current task's priority if needed.

1 static inline void rcu_read_unlock_unboost(void) 2 { 3 if (unlikely(current->rcub_state != RCU_BOOST_IDLE)) 4 __rcu_read_unlock_unboost(); 5 } 6 7 static void __rcu_read_unlock_unboost(void) 8 { 9 unsigned long oldirq; 10 struct rcu_boost_dat *rbdp; 11 12 rbdp = current->rcub_rbdp; 13 spin_lock_irqsave(&rbdp->rbs_mutex, oldirq); 14 15 list_del_init(&current->rcub_entry); 16 rbdp->rbs_unlock++; 17 current->rcub_rbdp = NULL; 18 19 rcu_boost_dat_stat_unlock(rbdp, current->rcub_state); 20 if (current->rcub_state == RCU_BOOSTED) { 21 rcu_unboost_prio(current); 22 rbdp->rbs_unboosted++; 23 } 24 current->rcub_state = RCU_BOOST_IDLE; 25 spin_unlock_irqrestore(&rbdp->rbs_mutex, oldirq); 26 }

The call from rcu_read_unlock() is placed so that rcu_read_unlock_unboost() is only invoked from the end of the outermost of a set of nested RCU read-side critical sections. This function is an inlineable wrapper around __rcu_read_unlock_unboost(), which it invokes only if the current task was blocked during the preceding RCU read-side critical section.

This same listing also shows the __rcu_read_unlock_unboost() helper function starting at line 7. Line 12 retrieves the pointer to the rcu_boost_dat that was cached by line 28 of __rcu_preempt_boost(). Line 13 then acquires the corresponding lock. Line 15 removes this task from whatever list it is on, line 16 counts the unlock, and line 17 NULLs out the cached pointer. Line 19 accumulates statistics, and lines 20-23 unboost the task's priority and count the unboost, but only if the task was boosted. Line 24 sets the task's state to indicate that it is no longer in an RCU read-side critical section in which it has blocked, and, finally, line 25 releases the lock.

Initialization

The early-boot initialization code looks like this:

1 static void init_rcu_boost_early(void) 2 { 3 struct rcu_boost_dat *rbdp; 4 int cpu; 5 int i; 6 7 for_each_possible_cpu(cpu) { 8 rbdp = per_cpu(rcu_boost_dat, cpu); 9 for (i = 0; i < RCU_BOOST_ELEMENTS; i++) { 10 rbdp[i].rbs_mutex = 11 RAW_SPIN_LOCK_UNLOCKED(rbdp[i].rbs_mutex); 12 INIT_LIST_HEAD(&rbdp[i].rbs_toboost); 13 INIT_LIST_HEAD(&rbdp[i].rbs_boosted); 14 rbdp[i].rbs_blocked = 0; 15 rbdp[i].rbs_boost_attempt = 0; 16 rbdp[i].rbs_boost = 0; 17 rbdp[i].rbs_unlock = 0; 18 rbdp[i].rbs_unboosted = 0; 19 #ifdef CONFIG_PREEMPT_RCU_BOOST_STATS 20 { 21 int j, k; 22 23 for (j = 0; j < N_RCU_BOOST_DAT_EVENTS; j++) 24 for (k = 0; k <= N_RCU_BOOST_STATE; k++) 25 rbdp[i].rbs_stats[j][k] = 0; 26 } 27 #endif /* #ifdef CONFIG_PREEMPT_RCU_BOOST_STATS */ 28 } 29 smp_wmb(); 30 rcu_boost_idx = 0; 31 } 32 }

This is quite straightforward, aside from the memory barrier on line 29 to prevent other CPUs from seeing rcu_boost_idx with a non-negative value but uninitialized values for the structures. Just in case early boot processing ever goes SMP!

However, init_rcu_boost_early() is called early in the boot process, as the name suggests -- early enough, in fact, that the scheduler is not yet functional. Therefore, the creation of the RCU-booster task must be deferred until later, when the scheduler is functional:

1 void init_rcu_boost_late(void) 2 { 3 int i; 4 5 printk(KERN_ALERT "Starting RCU priority booster\n"); 6 rcu_boost_task = kthread_run(rcu_booster, NULL, "RCU Prio Booster"); 7 if (IS_ERR(rcu_boost_task)) { 8 i = PTR_ERR(rcu_boost_task); 9 printk(KERN_ALERT 10 "Unable to create RCU Priority Booster, errno %d\n", -i); 11 rcu_boost_task = NULL; 12 } 13 }

This code shows the init_rcu_boost_late() function, which simply spawns the RCU-booster task and then returns.

Statistics Gathering and Output

This listing shows the statistics-accumulation functions and macros, which are defined only if the PREEMPT_RCU_BOOST_STATS configuration parameter is set.

1 static inline void 2 rcu_boost_dat_stat(struct rcu_boost_dat *rbdp, 3 int event, 4 enum rcu_boost_state oldstate) 5 { 6 if (oldstate >= RCU_BOOST_IDLE && 7 oldstate <= RCU_BOOSTED) { 8 rbdp->rbs_stats[event][oldstate]++; 9 } else { 10 rbdp->rbs_stats[event][N_RCU_BOOST_STATE]++; 11 } 12 } 13 14 #define rcu_boost_dat_stat_block(rbdp, oldstate) \ 15 rcu_boost_dat_stat(rbdp, RCU_BOOST_DAT_BLOCK, oldstate) 16 #define rcu_boost_dat_stat_boost(rbdp, oldstate) \ 17 rcu_boost_dat_stat(rbdp, RCU_BOOST_DAT_BOOST, oldstate) 18 #define rcu_boost_dat_stat_unlock(rbdp, oldstate) \ 19 rcu_boost_dat_stat(rbdp, RCU_BOOST_DAT_UNLOCK, oldstate)

The rcu_boost_dat_stat() function increments the element of the rbs_stats[] array selected by the event and state, but only for valid state values. Invalid state values cause one of the special invalid-state elements to be incremented, depending on the event. The rcu_boost_dat_stat_block(), rcu_boost_dat_stat_boost(), and rcu_boost_dat_stat_unlock() macros serve as short-hand wrappers for the rcu_boost_dat_stat function.

The listing below shows arrays used to assist in printk()-ing of statistics.

1 static char *rcu_boost_state_event[] = { 2 "block: ", 3 "boost: ", 4 "unlock: ", 5 }; 6 7 static char *rcu_boost_state_error[] = { 8 /*ibBe*/ 9 " ?", /* block */ 10 "! ?", /* boost */ 11 "? ?", /* unlock */ 12 };

The labels defined in rcu_boost_state_event[] serve as output line labels, while the characters defined in rcu_boost_state_error[] are used to note invalid state transitions. The "?" character indicates a completely invalid state, either because the state itself is undefined or because there is an enclosing check eliminating it, while the "!" character indicates a list-manipulation error. The space character indicates a valid state transition.

This long listing shows accumulation and printing of statistics.

1 static void rcu_boost_dat_stat_print(void) 2 { 3 char buf[N_RCU_BOOST_STATE * (sizeof(long) * 3 + 2) + 2]; 4 int cpu; 5 int event; 6 int i; 7 static time_t lastprint = 0; 8 struct rcu_boost_dat *rbdp; 9 int state; 10 struct rcu_boost_dat sum; 11 12 if (xtime.tv_sec - lastprint < 13 CONFIG_PREEMPT_RCU_BOOST_STATS_INTERVAL) 14 return; 15 sum.rbs_blocked = 0; 16 sum.rbs_boost_attempt = 0; 17 sum.rbs_boost = 0; 18 sum.rbs_unlock = 0; 19 sum.rbs_unboosted = 0; 20 for_each_possible_cpu(cpu) 21 for (i = 0; i < RCU_BOOST_ELEMENTS; i++) { 22 rbdp = per_cpu(rcu_boost_dat, cpu); 23 sum.rbs_blocked += rbdp[i].rbs_blocked; 24 sum.rbs_boost_attempt += rbdp[i].rbs_boost_attempt; 25 sum.rbs_boost += rbdp[i].rbs_boost; 26 sum.rbs_unlock += rbdp[i].rbs_unlock; 27 sum.rbs_unboosted += rbdp[i].rbs_unboosted; 28 } 29 for (event = 0; event < N_RCU_BOOST_DAT_EVENTS; event++) 30 for (state = 0; state <= N_RCU_BOOST_STATE; state++) { 31 sum.rbs_stats[event][state] = 0; 32 for_each_possible_cpu(cpu) { 33 for (i = 0; i < RCU_BOOST_ELEMENTS; i++) { 34 sum.rbs_stats[event][state] 35 += per_cpu(rcu_boost_dat, 36 cpu)[i].rbs_stats[event][state]; 37 } 38 } 39 } 40 printk(KERN_ALERT 41 "rcu_boost_dat: idx=%d " 42 "b=%ld ul=%ld ub=%ld boost: a=%ld b=%ld\n", 43 rcu_boost_idx, 44 sum.rbs_blocked, sum.rbs_unlock, sum.rbs_unboosted, 45 sum.rbs_boost_attempt, sum.rbs_boost); 46 for (event = 0; event < N_RCU_BOOST_DAT_EVENTS; event++) { 47 i = 0; 48 for (state = 0; state <= N_RCU_BOOST_STATE; state++) { 49 i += sprintf(&buf[i], " %ld%c", 50 sum.rbs_stats[event][state], 51 rcu_boost_state_error[event][state]); 52 } 53 printk(KERN_ALERT "rcu_boost_dat %s %s\n", 54 rcu_boost_state_event[event], buf); 55 } 56 lastprint = xtime.tv_sec; 57 }

This function refuses to take action unless sufficient time has elapsed since the last time it printed statistics, as can be seen from lines 12-14 and line 56. Locking will be required should multiple RCU-booster tasks ever become necessary. Lines 15-39 sum the corresponding statistical counters from all of the rcu_boost_dat structures, and lines 40-55 print out the sums.

Possible Future Enhancements

The act of getting any piece of software working (or even sort of working) almost always immediately suggested enhancements, and RCU priority boosting is no exception. This following list includes a few possibilities.

1. Boosting upon OOM. This is currently to be accomplished by having the RCU-booster task more aggressively boost when it becomes aware of OOM conditions, for example, reducing or omitting timed sleeps. Alternatively, one could activate the "canary" mechanism upon OOM, which could downgrade realtime tasks to non-realtime status, allowing the normal aging mechanisms to boost any blocked task that might be holding up a grace period.

2. Successive boosting to ever-higher priorities. This will likely be required in cases where the system administrator manually increases the priority of the RCU-booster task. The intent in this case is no doubt to kick some laggart RCU read-side critical section, which won't happen if the corresponding task has already been boosted. This is deferred until needed.

3. Use of multiple per-CPU or per-NUMA-node RCU booster tasks. This will undoubtedly be required for large systems, but is deferred until needed.

RCU Priority Boosting With Minimal Scheduler-Path Overhead

The solution described in this paper makes use of a separate RCU-booster task that monitors per-CPU arrays of lists of target tasks that have been blocked while in an RCU read-side critical section. Overhead is incurred only when such blocking occurs, permitting the RCU read-side-acquisition primitive (e.g., rcu_read_lock()) to contain exactly the same sequence of instructions contained in its non-boosted counterpart.

Data Structures

Each element of each per-CPU array is a structure named struct rcu_boost_dat as shown below:

1 struct rcu_boost_dat { 2 raw_spinlock_t rbs_mutex; 3 struct list_head rbs_toboost; 4 struct list_head rbs_boosted; 5 wait_queue_head_t rbs_target_wq; 6 wait_queue_head_t rbs_booster_wq; 7 int rbs_exit_done; 8 long rbs_blocked; 9 long rbs_boost_attempt; 10 long rbs_boost_wrongstate; 11 long rbs_boost_cmpxchgfail; 12 long rbs_boost_start; 13 long rbs_boost_end; 14 long rbs_unboosted; 15 long rbs_unlock; 16 long rbs_stats[][]; 17 }

The rbs_mutex field guards all fields in the structure, rbs_toboost is a list containing target tasks that are candidates for boosting, and rbs_boosted is a list containing target tasks that have already been boosted. The next three fields govern interactions between the RCU-booster task and an exiting target task: (1) rbs_target_wq is a wait queue for exiting target tasks, which ensures that the RCU-booster task has finished accessing the target before the target exits, (2) rbs_booster_wq is a wait queue for the RCU-booster task, which ensures that any exiting target task has completed blocking before the RCU-booster task reuses the rbs_target_wq field, and (3) rbs_exit_done is the flag that the RCU-booster conditions its wait_event() call on. The rest of the fields are statistics: rbs_blocked counts the number of RCU read-side critical sections that were blocked (whether once or multiple times), rbs_boost_attempt counts the number of tasks that the RCU-booster task has attempted to boost, rbs_boost_wrongstate counts the number of such attempts that were abandoned due to the target task being in the wrong state, rbs_boost_cmpxchgfail counts the number of such attempts that were abandoned due to concurrent state manipulation by some other task, rbs_boost_start counts the number of such attempts in which boosting was started, rbs_boost_end counts the number of such attempts in which boosting was completed normally, rbs_unlock counts the number of outermost rcu_read_unlock() operations that end a blocked RCU read-side critical section, and rbs_unboosted counts the number of tasks whose boosting had to be backed out due to a concurrent rcu_read_unlock(). The rbs_stats[] array tracks the number of transitions due to each event from each state. However, these structures are organized as described in "RCU Explicit Priority Boosting," above.

This approach uses the same task-struct fields as that of "RCU Explicit Priority Boosting," with the addition of a pointer to a struct rcu_boost_dat named rcub_rbdp_wq, which is used to mediate exit() processing.

Note that boosting might well be attempted concurrently with the target task removing itself from the list. Much care is required in order to avoid boosting a target task just after it removes itself from its list. Failure to avoid this scenario could result in an otherwise low-priority task remaining boosted indefinitely, in turn causing other high-priority realtime tasks to miss their deadlines. Worse yet, a task being boosted could call exit() immediately after exiting its critical section, possibly resulting in memory corruption due to the RCU-booster task attempting to unboost it after it had been completely removed from the system.

The state machine described in the next section prevents these failure scenarios from occurring.

State Diagram

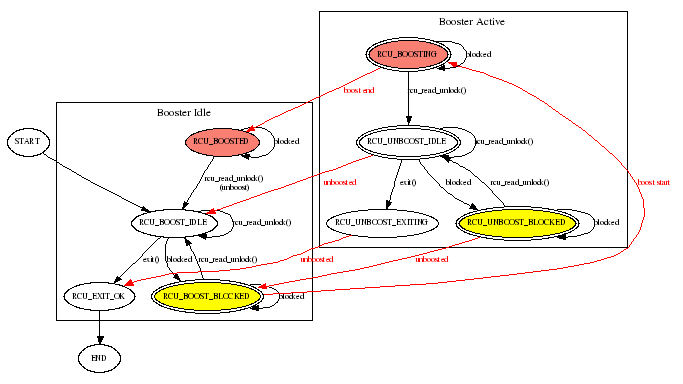

Each task has an associated RCU-booster state, which can take on the values shown in this diagram:

Tasks in any of the yellow states are linked into the uppermost of the two sets of lists shown in the data structure figure toward the beginning of this article, tasks in any of the red states are linked into the lower of these two sets of lists, and tasks in any of the unshaded states are not linked into either set of lists. The black state transitions are traversed by the task, while the red transitions are traversed by the RCU-booster task. The double-walled states may be exited either of these two, requiring that the state value be atomically manipulated. Fortunately, the RCU-booster task can only make three consecutive changes to the state before reaching a state that can only be exited by the task itself. Therefore, the number of consecutive compare-and-exchange failures for the task is limited to three, permitting $O(1)$ task-side state change. (The locking design used in the actual implementation further limits the number of consecutive compare-and-exchange failures to one.)

When a task resides in any of the single-walled states, however, the state may be manipulated non-atomically by the sole task permitted to exit that state.

Similarly, priority manipulations in a state that can be exited by the RCU-booster task are carried out by the RCU-booster task, even if that state can also be exited by the target task -- concurrent manipulation of priorities does not reduce the number of states, but does increase the probability of bugs. However, priority manipulations in a state that can only be exited by the target task are carried out by the target task.

Per-State Details

The purpose of the individual states are as follows:

• RCU_BOOST_IDLE: This is the initial state. A target task resides in this state when not in an RCU read-side critical section, or when in an RCU read-side critical section that has not yet blocked.

• RCU_BOOST_BLOCKED: The target task has blocked while in an RCU read-side critical section.

• RCU_BOOSTING: The RCU-booster task has begun boosting the target task's priority.

• RCU_BOOSTED: The RCU-booster task has completed boosting the target task's priority.

• RCU_UNBOOST_IDLE: The target task exited its RCU read-side critical section while in the process of being boosted. This task has removed itself from its list, but it is the responsibility of the RCU-booster task to back out of any boosting that has taken place.

• RCU_UNBOOST_BLOCKED: The target task not only exited its RCU read-side critical section, but entered another one and further was blocked before the RCU-booster task managed to finish boosting. The target task will have added itself back to the appropriate list, which might well be a different one than it was one before. This situation will need to be addressed if there are ever per-CPU RCU-booster tasks.

• RCU_UNBOOST_EXITING: The target task not only exited its RCU read-side critical section, but also managed to invoke exit() before the RCU-booster task managed to finish boosting. To avoid memory corruption, the target task must wait for the RCU-booster task to get done manipulating it before completing the exit() code path.

• RCU_EXIT_OK: The RCU-booster task has finished manipulating the target task, which may therefore safely complete the exit() code path. This is the final state for each target task.

Events

The important events for a target task are (1) being blocked in an RCU read-side critical section, (2) completing a previously blocked RCU read-side critical section, and (3) invoking exit(). When a target task is blocked in an RCU read-side critical section, it always adds itself to the current list of its per-CPU array. Conversely, when a target task completes a previously blocked RCU read-side critical section, it removes itself from this list. If priority boosting has completed, it also unboosts itself. During exit() processing, the target task must wait for the RCU-booster task to complete any concurrent boost/unboost actions.

The important events for the RCU-booster task are (1) starting to boost a target task's priority, (2) finishing boosting a target task's priority, and (3) unboosting a target task.

RCU Priority Boosting With Per-Task Lock

One of the issues with the approach described in the previous section is that RCU boosting must be explicitly accounted for in all task-priority calculations. The approach described in this section avoids this by providing a per-task lock whose main purpose is to provide priority-boosting to the target tasks, and also has a somewhat simpler state machine. This leads to a corresponding drawback, namely, that processes blocking in RCU read-side critical sections incur a latency penalty corresponding to the overhead of acquiring this additional lock.

Another drawback that became apparent only after extensive experimentation is that this method cannot work completely reliably. It is possible for the target task to block waiting for its own lock in the (unlikely, but possible) case where the RCU-booster task has just boosted it, but not yet released the lock. In this case, the target task will block waiting for the lock, and, if it is sufficiently low priority, never get a chance to run again. Since it does not yet hold the lock, the RCU-booster task is unable to priority boost it.

You should therefore instead use the approach described in "RCU Priority Boosting With Minimal Scheduler-Path Overhead," above.

Nevertheless, this approach is described in some detail in the hope that someone will figure out a way to make it work. After all, it is a bit simpler. Too bad about it not working in all cases!

Data Structures

The data structures are very similar to those called out in the "Data Structures" section above.

State Diagram

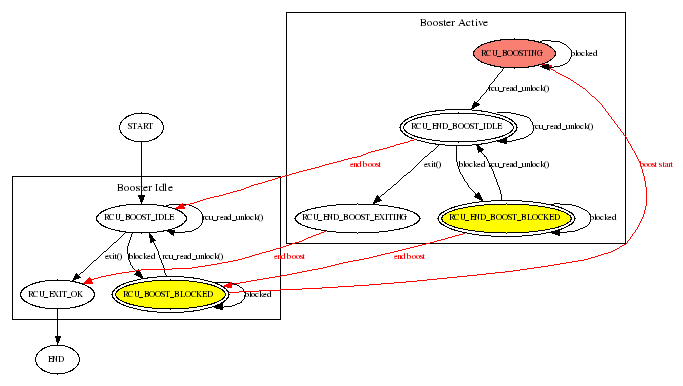

Here is a state diagram for the per-task-lock version of RCU priority boosting.

This fairly closely resembles the one shown in the previous section, but is slightly simpler, having one fewer node and fewer edges.

Target tasks in any of the yellow states are linked into the uppermost of the two sets of lists shown above, target tasks in any of the red states are linked into the lower of these two sets of lists, and target tasks in any of the unshaded states are not linked into either set of lists. Target tasks in shaded states hold the per-task lock, and the RCU-booster task might or might not hold a target task's per-task lock while the target task is in any of the RCU_END_BOOST_IDLE, RCU_END_BOOST_BLOCKED, or RCU_END_BOOST_EXITING states. The black state transitions are traversed by the task, while the red transitions are traversed by the RCU-booster task. The double-walled states may be exited either of these two, requiring that the state value be atomically manipulated.

Per-State Details

The purpose of the individual states are as follows:

• RCU_BOOST_IDLE: This is the initial state. A target task resides in this state when not in an RCU read-side critical section, or when in an RCU read-side critical section that has not yet blocked. The task does not hold the per-task lock.

• RCU_BOOST_BLOCKED: The target task has blocked while in an RCU read-side critical section, and holds its per-task lock. The target task will release its per-task lock upon exiting this state, so the RCU-booster task should never see this state. Of course, this state is the Achilles's heel of this approach. The target task might block on the lock, and never get a chance to run again. There are a number of amusing (but broken) strategies one might use, including reader-writer locks that the target task attempts to acquire recursively and the like.

• RCU_BOOSTING: The RCU-booster task has begun boosting the target task's priority. It first changes state, and only then acquires the target task's per-task lock. The target task can see this state either before or after the RCU-booster task has blocked on its per-task lock, but either way removes itself from the list and changes state to RCU_END_BOOST_IDLE -- and only then releases its per-task lock.

• RCU_END_BOOST_IDLE: The target task completed its RCU read-side critical section after (or while in the process of) being boosted. Once the RCU-booster task acquires the lock, it will transition the state to RCU_BOOST_IDLE, then release the lock.

• RCU_END_BOOST_BLOCKED: The target task not only exited its RCU read-side critical section, but entered another one and further was blocked before the RCU-booster task managed to acquire the target task's lock. The target task will have added itself back to the appropriate list, and will hold its own per-task lock. Similarly to RCU_BOOST_BLOCKED, the target task will change state to RCU_END_BOOST_IDLE and only then release its per-task lock.

• RCU_UNBOOST_EXITING: The target task not only exited its RCU read-side critical section, but also managed to invoke exit() before the RCU-booster task acquired the target task's per-task lock. To avoid memory corruption, the target task must wait for the RCU-booster task to get done manipulating it before completing the exit() code path.

• RCU_EXIT_OK: The RCU-booster task has finished manipulating the target task, which may therefore safely complete the exit() code path. This is the final state for each target task.

Events

The important events for a target task are (1) blocking in an RCU read-side critical section, (2) completing a previously blocked RCU read-side critical section, and (3) invoking exit(). When a target task is blocked in an RCU read-side critical section, it always adds itself to the current list of its per-CPU array. Conversely, when a target task completes a previously blocked RCU read-side critical section, it removes itself from this list. If priority boosting has completed, it also unboosts itself. During exit() processing, the target task must wait for the RCU-booster task to complete any concurrent boost/unboost actions.

The important events for the RCU-booster task are (1) starting to boost a target task's priority and (2) finishing boosting a target task's priority.

Important Safety Tip

Again, this lock-per-task approach simply does not work reliably in all cases. It is included only because I thought it would work, and because I feel that the cautionary tale might be valuable. You should instead use the approach described in "RCU Priority Boosting With Minimal Scheduler-Path Overhead."

Issues and Roads Not Taken

Priority-boosting RCU read-side critical sections, although simple in concept, is fraught with subtle pitfalls. This section records some of the pitfalls that I fell into, in the hope that it saves others the time and trouble.

1. Aggregating lists over multiple CPUs. This might be needed for very large systems, but wait until needed before increasing the complexity. However, on large systems, it probably makes more sense to instead provide multiple RCU-boost tasks, perhaps one per CPU or per NUMA node.

2. Dedicating a per-task lock to priority-boosting of target tasks. As was noted in "RCU Priority Boosting With Per-Task Lock," this simply does not work in all cases.

3. Simpler list locking, for example, single lock per CPU. This was rejected because it could in greater contention between the RCU-booster task and target tasks. With the current design under normal conditions, contention should only occur during rcu_read_unlock() and exit() processing. Even then, multi-jiffy RCU read-side critical sections are required for the rcu_read_unlock() to contend with the RCU-booster task. For example, if such critical sections are blocked!

4. Immediate boosting upon blocking was rejected due to the additional scheduling latency it imposes. (Although earlier prototypes did just this, a very few of them reliably so.)

5. Use of preempt_disable() instead of local_irq_disable() works, but subjects the code to extra preemption checks upon preempt_enable().

6. Zero scheduling-path latency. The idea here is to require that the RCU-booster task walk the entire task list in search of tasks in need of boosting. This may be necessary for some workloads, but the overhead of the full task-list walk seems prohibitive for any server-class workload featuring large numbers of tasks.

Lessons Learned Along the Way

1. Interactions with RCU read-side critical sections are very touchy. By definition, a CPU can exit such a critical section with very few ripples, after all, the whole point of RCU's read-side primitives is to be very lightweight. Therefore, synchronizing with these primitives, as the RCU-booster task must, is fraught with peril. It is not that the final solution is all that complex or difficult, it is rather that there is a very large number of seductive but incorrect "solutions".

2. Interacting with tasks (which might exit at any time) can also be quite touchy. Most of the methods used to keep a task pinned down simply keep the task structure itself pinned down. Unfortunately, the RCU-booster task needs the target task to be alive and able to respond, for which a separate mechanism was (perhaps redundantly) constructed.

3. The __rcu_init() function is called extremely early. Not that this was a surprise, but what was a surprise was just how many common kernel APIs cannot be called that early. The solution is straightforward (add a second initialization function that is called later from do_basic_setup(), though there may well be a better solution), but this nevertheless somehow managed to be a surprise. The system_state variable is very helpful in marking when the scheduler becomes usable.

4. The act of designing enterprise-level "torture tests" can have the beneficial side-effect of inspiring much simpler (and thus easier to test) solutions.

5. The act of documenting a tricky algorithm can also have the beneficial side-effect of inspiring much simpler (and thus easier to document) solutions.

I had of course encountered the last two lessons much earlier in my career, but this problem offered a much-needed refresher course.

Acknowledgements

I owe a debt of gratitude to the developers and maintainers of the graphviz package, which greatly eased design of RCU priority boosting. I also owe thanks to Josh Triplett for introducing me to this invaluable package.

Legal Statement

This work represents the view of the author and does not necessarily represent the view of IBM. Intel is a registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. % Java and all Java-based trademarks are trademarks of Sun Microsystems, % Inc. in the United States, other countries, or both. Linux is a registered trademark of Linus Torvalds in the United States, other countries, or both. Other company, product, or service names may be trademarks or service marks of others.

---
